UniBlimp - Battery only
UniBlimp - 8 m
UniBlimp 8 m is our base battery powered model. It is designed for one to two hours of flight autonomy and able to carry GoPro with gimbal or other similar weight DJI or other camera solution. It has single front strong brushless motor, back reverse motor, Stabilisers with ailerons and bases for camera rig, batteries and electronics. Depending on your needs it can be delivered with Futaba, few miles range, or with DMD 20 km range. Autopilot is optional for this model/size.
Rough Specification:
- 8 x 1.5 m - Volume 11 m3 - Double welding technology - Envelope material 100 microns White Polyurethane High Grade UK quality - Helium permeability 0.5 to 1% maximum daily on total volume - guaranteed - Single main front motor design - Security RC safety valve - 4 stabilizers with ailerons - 1 low fin reserve motor - Elite 520 kv Brush-less motor - 90 A ESC - LiPo battery 2 x 5000 mAh 6S 22 V - for the main motor and on-board RC System - LiPo battery 5000 mAh 3S 11.1 V for the Camera and connectivity - RX/TX Futaba 14SG - UBEC 5A for System power - Digital charger for the batteries - Basic telemetry data on Futaba 14 SG - Rest Blimp and electronics related accessories - Status Ready to fly - All included except helium - Maximum speed - up to 50 km/h - Air time 60+ minutes depending on piloting style (combined flight and hovering) - Temperature conditions -10 to 50 Celsius - Flight range with Futaba 14 SG up to 4 km - Flight ceiling up to 300 m from start point
Price: 16.770,00 Euro / 18.508,00 USD*
FedEx / TNT / Gebruder Weiss Worldwide: 670 Euro
Production time 20 to 25 days
Payment method: 50% to start, 30% during production and 20% when finished prior to delivery
Note: the export papers (transport invoice) is at 20% value
*The exact dollar amount on the day of purchase
UniBlimp - Solar Modules + Battery

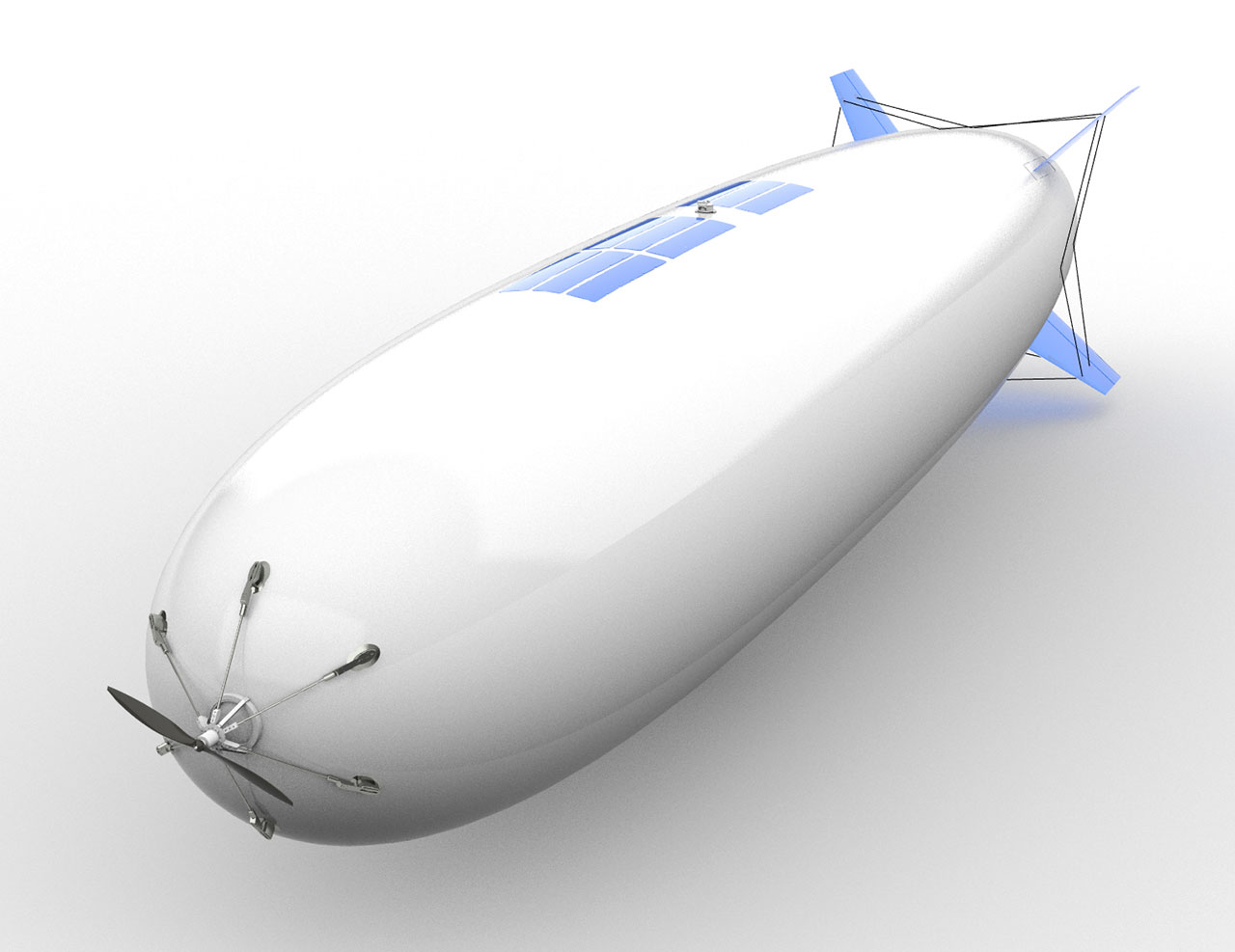

UniBlimp - 10 m SOLAR
10 m Solar is a single front engine Solar powered RC Blimp (Airship). Designed to fly until sufficient sunlight with especially designed intelligent power distributor. Able to carry Sony with gimbal or other similar weight cameras or other camera solution. It has a single front strong brushless motor, back reverse motors, Stabilizers with ailerons and bases for camera rig, batteries and electronics. Depending on your needs it can be delivered with Futaba, few miles range, or with DMD 20 km range. Autopilot is optional for this model/size.
Rough Specification:
- 10 m x 1.9 m Solar RC Blimp (Uniblimp type) - Volume 22 m3 - Envelope Area 56 m2 - Envelope material Polyurethane 125 microns white UK quality - Double welding technology - Helium permeability 0.5 to 1% on total volume maximum daily - guaranteed - RC Safety valve - RC safety bobbin - Solar cells Flisom Switzerland flisom.com - 4 stabilizers with ailerons - 1 low stabilizer reverse motor (left/right control) - 1 main motor positioned on the nose - Pitchler or Hackler flat design main motor shop.pichler.de or www.hacker-motor-shop.com - Carbon 23 to 25 inch propeller - Battery and control electronics compartment 3D printed - Main motor mount 3D print and aluminum combination - 4 x 6000 mAh 5S LiPo batteries (2 groups by 2 batteries) - 4 to 6 solar film cells on top of the Blimp - On-board battery charger and battery charge controller - Smart electronic controller to switch battery packs (charge/use) - Futaba 14 SG (Futaba Rx/Tx) - Rest Blimp and equipment related accessories - Status Ready to fly - All included except helium - Useful payload up to 2.5 to 3.5 kg (Additional payload on a fully set Blimp) - Maximum speed - up to 50 km/h - Air time in-definitively (under normal flight conditions) - Temperature conditions -15 to 55 Celsius - Flight range with Futaba 14 SG up to 4 km - Flight ceiling up to 500 m from start point
Status: Ready to fly (Tested prior to delivery) - All included except helium
Production time: around 30 to 45 days due to high custom complexity and our current production schedule
Price: 33.437,00 Euro / 38.902,00 USD*
FedEx / TNT / Gebruder Weiss Worldwide: 970 Euro
Payment method: 50% to start, 30% during production and 20% when finished prior to delivery
Note: the export papers (transport invoice) is at 20% value
*The exact dollar amount on the day of purchase
